Find more information in the General Comments section of the assessment
Find more information in the Rating Validity tab of the assessment
-
Adult Occupant
See More
92% -
Child Occupant
See More
86% -
Pedestrian
See More
43% -
Safety Assist
See More
86%
- Good
- Adequate
- Marginal
- Weak
- Poor
Passenger
Driver
Front Seat
Car
Pole
- Good
- Adequate
- Marginal
- Weak
- Poor
Passenger
outboard
center
- Fitted to the vehicle as standard
Not fitted to the test vehicle but available as option- Not Available
Forward movement of the 3 year dummy, sat in a forward-facing restraint, was not excessive and both the 3 year and the 18 month dummies were properly contained in the side impact test. The front passenger airbag can be disabled to allow a rearward-facing restraint to be used in that seating position and the i40 provides clear information to the driver regarding the status of the airbag. A permanently attached label gives a clear warning of the dangers of using a rearward facing seat in the passenger seat without first disabling the airbag.
- Good
- Adequate
- Marginal
- Weak
- Poor
Head Impact 8.1 Pts
Pelvis Impact 1.5 Pts
Leg Impact 6.0 Pts
The protection offered by the bonnet was predominantly poor or marginal. The front edge of the bonnet also offered mostly poor or marginal protection to pedestrians. Only the bumper scored maximum points, offering good protection to pedestrians' legs.
- Good
- Adequate
- Marginal
- Weak
- Poor
| Performance | ||
| Vehicle Yaw Rate @ COS + 1.00 s | 9.700001% | meets ECE requirements |
| Vehicle Yaw Rate @ COS + 1.75 s | 2.1% | meets ECE requirements |
| Lateral Displacement @ BOS + 1.07 s | 3.08 m | meets ECE requirements |
| Applies To | Front seats | ||
| Warning | Driver Seat | Front Passenger(s) | Rear Passenger(s) |
| Visual | |
|
 |
| Audible | |
|
|
|
|||
FailThe i40 is equipped with electronic stability control (ESC) as standard equipment. A driver-set speed limitation device is optional on low grades but its sales as standard equipment on higher grade models are exepcted to exceed Euro NCAP's 2011 requirements. A seat belt reminder is standard for both the driver and front seat passenger.
- Specifications
- Safety Equipment
- Videos
- Rating Validity
Specifications
Tested Model Hyundai i40 1.7 diesel GLS, LHD
Body Type - 5 door hatchback
Year Of Publication 2011
Kerb Weight 1570kg
VIN From Which Rating Applies - applies to all i40s of the specification tested
Class Large Family Car
Safety Equipment
Note: Other equipment may be available on the vehicle but was not considered in the test year.
- Fitted to the vehicle as standard
- Fitted to the vehicle as option
- Not fitted to the test vehicle but available as option
- Not Available
- Not Applicable
Videos
Rating Validity
Find more information in the General Comments section of the assessment
Based on data reviewed by Euro NCAP, a similar level of safety performance can be expected from the i40 sedan.
Share

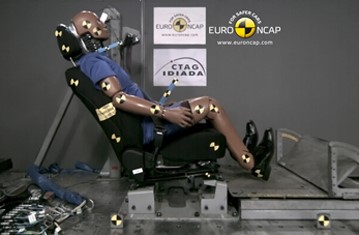

The passenger compartment of the i40 remained stable in the frontal impact. A driver knee airbag is standard equipment and dummy readings indicated good protection of the knees, femurs and pelvis for both front seat occupants. The steering column was considered a potential risk but Hyundai demonstrated that other parts of the facia offered good protection. The i40 scored maximum points in the side barrier test and provided adequate chest protection in the more severe side pole impact. The seat and head restraint provided good protection against whiplash injuries in the event of a rear-end collision.
