- With standard equipment
- With safety pack
Find more information in the General Comments section of the assessment
Find more information in the Rating Validity tab of the assessment
-
See More
![]()
90% -
See More
![]()
87% -
See More
![]()
80% -
See More
![]()
77%
- Good
- Adequate
- Marginal
- Weak
- Poor
Passenger
Driver
Rear Passenger
Driver
Car
Pole
Rear Seat
Front Seat
- Good
- Adequate
- Marginal
- Weak
- Poor
Passenger
outboard
center
![]()
Fitted to the vehicle as standard![]()
Not fitted to the test vehicle but available as option![]()
Not Available
Not fitted to the test vehicle but available as option-
i-Size CRS
-
ISOFIX CRS
-
Universal Belted CRS
![]()
Easy![]()
Difficult![]()
Safety critical![]()
Not allowed
Safety critical| Seat Position | ||||
|---|---|---|---|---|
| Front | 2nd row | |||
| Passenger | Left | center | Right | |
| Maxi Cosi 2way Pearl & 2wayFix (rearward) (iSize) |  |
|
|
|
| Maxi Cosi 2way Pearl & 2wayFix (forward) (iSize) | |
|
|
|
| BeSafe iZi Kid X2 i-Size (iSize) | |
|
|
|
| Maxi Cosi Cabriofix & FamilyFix (ISOFIX) | |
|
|
|
| BeSafe iZi Kid X4 ISOfix (ISOFIX) | |
|
|
|
| Britax Römer Duo Plus (ISOFIX) | |
 |
|
|
| Britax Römer KidFix XP (ISOFIX) | |
|
|
|
| Maxi Cosi Cabriofix (Belt) | |
|
|
|
| Maxi Cosi Cabriofix & EasyBase2 (Belt) | |
|
|
|
| Britax Römer King II LS (Belt) | |
|
|
|
| Britax Römer KidFix XP (Belt) | |
|
|
|
![]()
Easy![]()
Difficult![]()
Safety critical![]()
Not allowed
In the frontal offset test, protection of the chest of the 6 year dummy was rated as marginal, based on chest decelerations. Otherwise, protection of the 6 and 10 year dummies was good or adequate. In the side barrier test, protection of both child dummies was good for all critical parts of the body. The X-Class has a system that automatically disables the front passenger airbag when a rearward-facing child restraint is used in that seating position. Mercedes-Benz showed that the system worked robustly and it was rewarded. The restraint used to assess Group I ISOFIX restraints required a multi-stage installation procedure. Otherwise, restraints could be properly installed and accommodated in the vehicle.
- Good
- Adequate
- Marginal
- Weak
- Poor
Head Impact 16.7 Pts
Pelvis Impact 6.0 Pts
Leg Impact 5.9 Pts
| System Name | Active Brake Assist | ||
| Type | Auto-Brake with Forward Collision Warning | ||
| Operational From | 10 km/h | ||
| Additional Information | Defaults on for every journey; operates above 40km/h and in low ambient light | ||
| PERFORMANCE | | |||
| Autobrake Function | |||
| Avoidance | Mitigation | ||
|
Running Adult crossing from Farside
|
Collision avoided up to 50 km/h | Impact mitigated up to 60 km/h | |
|
Walking Adult crossing from Nearside -25%
|
Collision avoided up to 45 km/h | Impact mitigated up to 60 km/h | |
|
Walking Adult crossing from Nearside -75%
|
Collision avoided up to 60 km/h | ||
|
Running Child from behind parked vehicles
|
Collision avoided up to 35 km/h | Impact mitigated up to 45 km/h | |
The protection provided by the bonnet to the head of a struck pedestrian was predominantly adequate or marginal. Protection of pedestrians' legs was good or adequate. The pedestrian-detecting autonomous emergency braking system performed well in Euro NCAP's tests, with collisions avoided or mitigated at most test speeds.
- Good
- Adequate
- Marginal
- Weak
- Poor
| System Name | SPEEDTRONIC |
| Speed Limit Information Function | Camera based, subsigns supported |
| Warning Function | Manually set |
| Speed Limitation Function | Manually set (accurate to 5km/h) |
| Applies To | All seats | ||
| Warning | Driver Seat | Front Passenger(s) | Rear Passenger(s) |
| Visual | |
|
|
| Audible | |
|
|
|
|||
| System Name | Lane Keeping Assist |
| Type | Lane Departure Warning |
| Operational From | 60 km/h |
| Warning | Haptic |
| Performance | |
|
LDW Confirmation Test
|
Pass |
| System Name | Active Brake Assist | |||
| Type | Forward Collision Warning with Auto-Brake | |||
| Operational From | 5 km/h | |||
| Additional Information | Default On | |||
| Performance | | ||||
| Autobrake Function Only | Driver reacts to warning | |||
| Operational Speed | 5-200 km/h | 5-200 km/h | ||
| Approaching a stationary car | See AEB City | Crash avoided up to 70km/h.Crash speed reduced up to 80km/h. | ||
| Approaching a slower moving car | Crash avoided up to 70km/h. | Crash avoided up to 80km/h. | ||
| Following a car at short distance | ||||
| Car in front brakes gently | Avoidance | Avoidance | ||
| Car in front brakes harshly | Mitigation | Mitigation | ||
| Following a car at long distance | ||||
| Car in front brakes gently | Avoidance | Avoidance | ||
| Car in front brakes harshly | Avoidance | Avoidance | ||
The X-Class has a standard seatbelt reminder system for the front and rear seats. The speed assistance system identifies the local speed limit and provides this information to the driver who can then set the limiter accordingly. A lane assistance system warns the driver when the vehicle is drifting out of lane. The autonomous emergency braking system performed well at highway speeds, with collisions avoided or mitigated in all test scenarios.
- Specifications
- Safety Equipment
- Videos
- Rating Validity
Specifications
Tested Model Mercedes-Benz X 250d 'POWER', LHD
Body Type - 4 door double cab
Year Of Publication 2017
Kerb Weight 2252kg
VIN From Which Rating Applies - all X-Class
Class Pickup Truck
Safety Equipment
Note: Other equipment may be available on the vehicle but was not considered in the test year.
![]()
Fitted to the vehicle as standard![]()
Fitted to the vehicle as part of the safety pack![]()
Not fitted to the test vehicle but available as option or as part of the safety pack![]()
Not available![]()
Not applicable
Fitted to the vehicle as part of the safety packVideos
Rating Validity
Variants of Model Range
| Body Type | Engine & Transmission | Model Name/Code | Drivetrain | Rating Applies | |
|---|---|---|---|---|---|
| LHD | RHD | ||||
| 4 door double cab | 2.3 diesel, automatic | X220d | 4 x 2 |  |
|
| 4 door double cab | 2.3 diesel, automatic | X220d 4Matic | 4 x 4 | |
|
| 4 door double cab | 2.3 diesel, automatic | X250d | 4 x 2 | |
|
| 4 door double cab | 2.3 diesel, automatic | X250d 4Matic* | 4 x 4 | |
|
* Tested variant
Find more information in the General Comments section of the assessment
Share

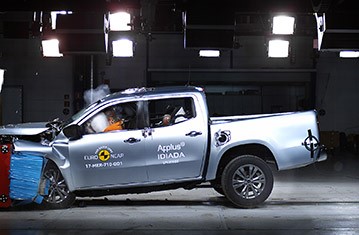

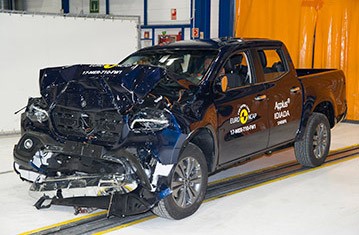

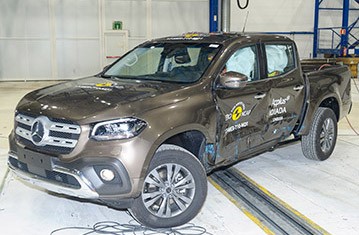

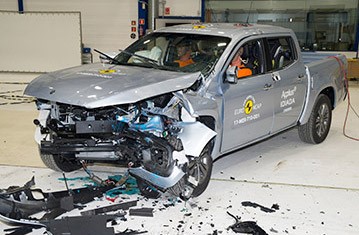

The passenger compartment of the X-Class remained stable in the frontal offset test. Dummy readings showed good protection of the knees and femurs of the driver and passenger. Mercedes-Benz demonstrated that a similar level of protection would be provided to occupants of different sizes and to those sat in different positions. In the full-width rigid barrier test, protection of the driver and rear passenger was good or adequate for all critical parts of the body. In the side barrier impact, protection of all critical body areas was good. Even in the more severe side pole test, protection of the chest was adequate and that of other parts of the body was good. Tests on the front seats and head restraints demonstrated good protection against whiplash protection in the event of a rear-end collision. However, a geometric assessment of the rear seats indicated poor whiplash protection. The standard-fit autonomous emergency braking system scored maximum points in tests of its functionality at the low speeds, typical of city driving, at which many whiplash injuries are caused.
