- With standard equipment
- With safety pack
Find more information in the General Comments section of the assessment
Find more information in the Rating Validity tab of the assessment
-
See More
![]()
93% -
See More
![]()
87% -
See More
![]()
82% -
See More
![]()
80%
- Good
- Adequate
- Marginal
- Weak
- Poor
-
![]()

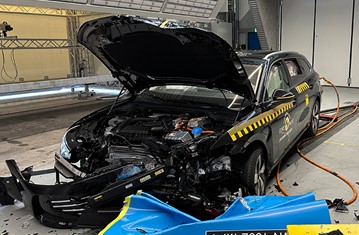

Mobile Progressive Deformable Barrier![]()
-
![]()
Full Width Rigid Barrier
-
![]()
Side Mobile Barrier
![]()
Side Pole
-
![]()
Far-Side Excursion
Occupant Interaction![]()
Occupant Interaction
Rear Seat
Front Seat
| Rescue Sheet |
Available, ISO compliant
|
|||
| Advanced eCall | Available | |||
| Multi Collision Brake | Available | |||
| Submergence Check | Compliant | |||
- Good
- Adequate
- Marginal
- Weak
- Poor
Passenger
outboard
center
![]()
Fitted to the vehicle as standard![]()
Not fitted to the test vehicle but available as option![]()
Not Available
i-Size
![]()
Easy![]()
Difficult![]()
Safety critical![]()
Not allowed-
![]()
Airbag ON
Rearward facing restraint installation not allowed
Difficult
Safety critical
Airbag ON
Isofix
![]()
Easy![]()
Difficult![]()
Safety critical![]()
Not allowed-
![]()
Airbag ON
Rearward facing restraint installation not allowed
![]()
Easy![]()
Difficult![]()
Safety critical![]()
Not allowed-
![]()
Airbag ON
Rearward facing restraint installation not allowed
In the both the frontal offset and side barrier tests, protection was good for all critical body areas of both child dummies and the Passat scored maximum points. The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. The Passat has an indirect child presence detection system, which warns when a child or infant may have been left in the car. However, Euro NCAP did not have the opportunity to assess the system and points have not been awarded. All of the child restraint types for which the Passat is designed could be properly installed and accommodated in the car.
- Good
- Adequate
- Marginal
- Weak
- Poor
Pedestrian & Cyclist Head 11.5 Pts
Pelvis 4.5 Pts
Femur 4.5 Pts
Knee & Tibia 7.4 Pts
| System Name | Front Assist | ||
| Type | Auto-Brake with Forward Collision Warning | ||
| Operational From | 4 km/h | ||
| PERFORMANCE | | |||
Protection of the head of a struck pedestrian or cyclist was predominantly adequate, with poor results recorded on the still windscreen pillars and at the base of the screen. Protection of the pelvis was good at all test points as was that of the femur, and the Passat scored maximum points for these areas. Protection of the knee and tibia was predominantly good. The autonomous emergency braking (AEB) system of the Volkswagen can respond to vulnerable road users as well as to other vehicles. The system’s response to pedestrians was good and the Passat scored full points for its response to cyclists, and most of the points for ‘dooring’, where a door is suddenly opened in the path of a cyclist approaching from behind. The collision avoidance system performed well in tests of its response to motorcyclists, scoring full points for AEB and scoring well for its lane support.
- Good
- Adequate
- Marginal
- Weak
- Poor
| System Name | Predictive Speedlimiter |
| Speed Limit Information Function | Camera & Map, subsigns supported |
| Speed Control Function | Intelligent Speed Limiter not default ON (accurate to 5km/h) |
| Applies To | Front and rear seats | ||
| Warning | Driver Seat | Front Passenger(s) | Rear Passenger(s) |
| Visual | |
|
|
| Audible | |
|
|
| Occupant Detection |  |
|
|
|
|||
| System Name | Driver Alert System |
| Type | Indirect monitoring |
| Operational From | 30 km/h |
| Fatigue | Drowsiness |
| System Name | Lane Support System |
| Type | LKA and ELK |
| Operational From | 65 km/h |
| Performance | |
| Emergency Lane Keeping | |
| Lane Keep Assist | |
| Human Machine Interface | |
| System Name | Front Assist | |||
| Type | Autonomous emergency braking and forward collision warning | |||
| Operational From | 4 km/h | |||
| Sensor Used | camera and radar | |||
Overall, the performance of the autonomous emergency braking (AEB) system was good in tests of its reaction to other vehicles, with collisions avoided in most test scenarios. A seatbelt reminder system is fitted as standard to the front and rear seats. The car has an indirect driver status monitoring system as standard, detecting driver fatigue. The lane support system gently corrects the vehicle’s path if it is drifting out of lane and also intervenes in some more critical situations. The speed assistance system identifies the local speed limit. The driver can choose to allow the limiter to be set automatically by the system.
- Specifications
- Safety Equipment
- Videos
- Rating Validity
Specifications

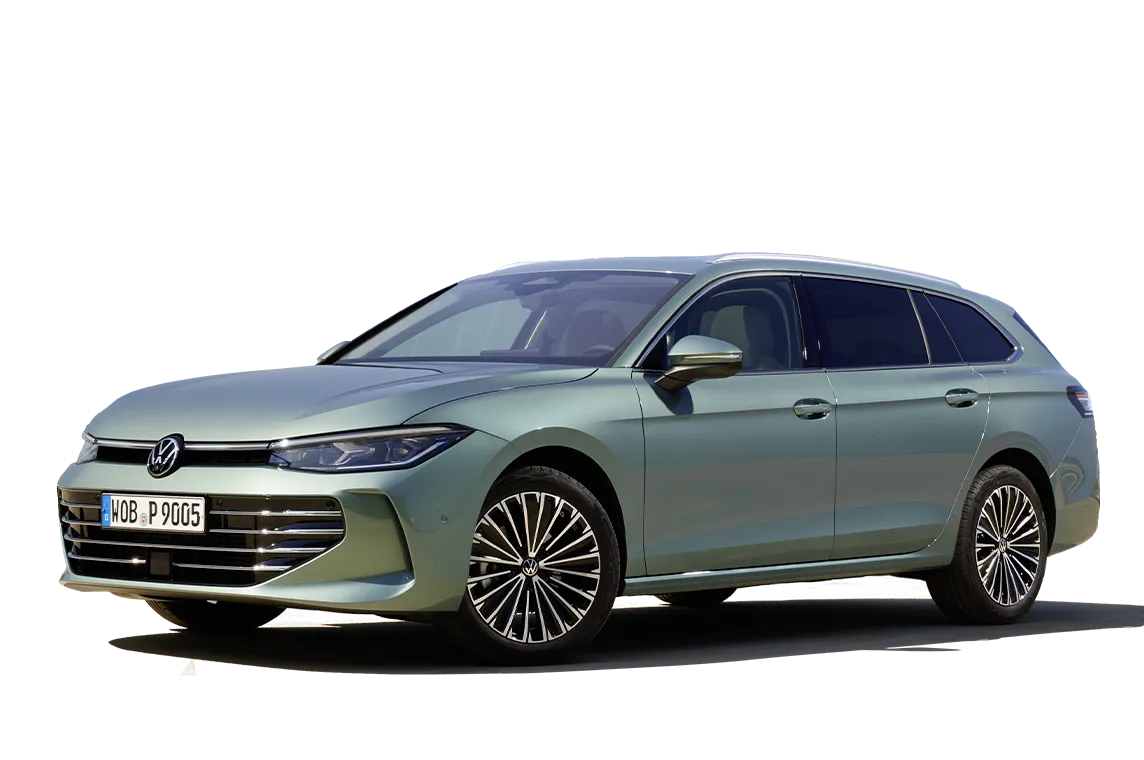

Tested Model VW Passat 2.0 TDI "Business", LHD
Body Type - 5 door estate
Year Of Publication 2024
Kerb Weight 1618kg
VIN From Which Rating Applies - all Passats
Class Large Family Car
Safety Equipment
Note: Other equipment may be available on the vehicle but was not considered in the test year.
![]()
Fitted to the vehicle as standard![]()
Fitted to the vehicle as part of the safety pack![]()
Not fitted to the test vehicle but available as option or as part of the safety pack![]()
Not available![]()
Not applicable
Fitted to the vehicle as part of the safety packVideos
Rating Validity
Variants of Model Range
| Body Type | Engine & Transmission | Model Name/Code | Drivetrain | Rating Applies | |
|---|---|---|---|---|---|
| LHD | RHD | ||||
| 5 door estate | 1.5 petrol | 1.5 eTSI | 4 x 2 |  |
|
| 5 door estate | 2.0 petrol | 2.0 TSI | 4 x 2 | |
|
| 5 door estate | 2.0 petrol | 2.0 TSI | 4 x 4 | |
|
| 5 door estate | 2.0 diesel | 2.0 TDI | 4 x 2 | |
|
| 5 door estate | 2.0 diesel | 2.0 TDI | 4 x 4 | |
|
| 5 door estate | 1.5 petrol PHEV | 1.5 eHybrid | 4 x 2 | |
|
* Tested variant
Find more information in the General Comments section of the assessment
Share

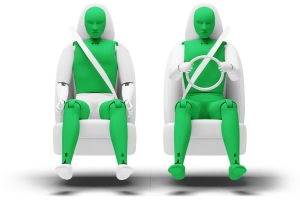

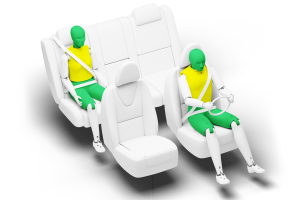

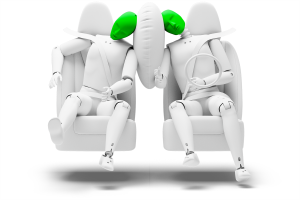

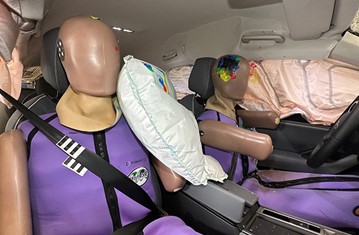

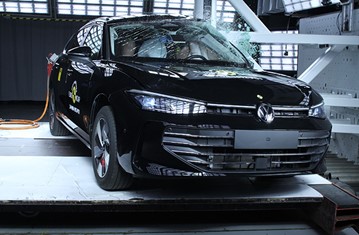

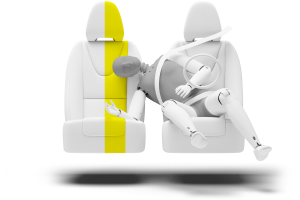

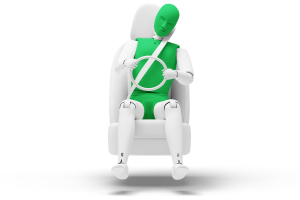

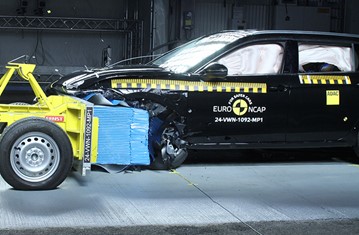

The passenger compartment of the Passat remained stable in the frontal offset test. Protection was good for all critical body areas of both the driver and passenger, and full points were scored for the dynamic dummy results. Volkswagen demonstrated that the same level of protection would be provided to the knees and femurs of occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the Passat would be a moderately benign impact partner in a frontal collision. In the full-width rigid barrier test, protection was good or adequate for all critical body areas of the driver and rear passenger. In both the side barrier and pole impact tests, protection of all critical body areas was good and the car scored maximum points in this part of the assessment. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The Passat has a countermeasure to mitigate against occupant-to-occupant injuries in such impacts and this performed well in Euro NCAP's test, with good protection of the heads of both front occupants. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The Passat has an advanced eCall system which alerts the emergency services in the event of a crash, and there is a system to prevent secondary impacts after the car has been in a collision. Volkswagen demonstrated that the doors and windows would be openable to allow occupants to escape in the event of vehicle submergence.
